Calculated fields are ad-hoc dimensions and measures you add to a workbook report. You can promote a calculated dimension to a workbook field to use it in other reports of the workbook and on its dashboards. Calculated fields do not change the shared data model. As described in Semantic SQL, Cube routes analysis through the semantic layer instead of sending arbitrary SQL straight to the warehouse. The runtime validates every request and applies your security policies. Semantic SQL builds on Postgres-compatible SQL—including the MEASURE() function—so you can express derived logic on top of existing semantic definitions with both flexibility and governance. Calculated fields are expressed as Semantic SQL and pushed down to the Cube backend for evaluation. The semantic layer compiles them with the rest of the query—rather than applying them only in the browser—so the same validation, governance, and warehouse execution path apply as for any other Semantic SQL analysis.

Using AI to create calculated fields

You can ask the Cube AI agent to create custom calculations in natural language. The agent can add or refine calculated fields from different parts of the product—for example while exploring in Analytics chat or working in Workbooks—so you are not limited to a single entry point when you want a new metric or dimension for the analysis in front of you.

Creating calculated fields in UI

You can also build and edit calculated fields directly in the workbook. New fields appear in the Query fields section of the field picker sidebar and belong to the current report. To reuse a dimension in other reports and on dashboards, promote it to a workbook field.

Aggregations from existing dimensions

Right-click a dimension column header and choose an aggregation to create a calculated field automatically. Available aggregations depend on the column type:

Calculations from existing measures

Open the menu on a measure column header and use the Calculations submenu for derived calculations:
% of previous, % change from previous, and Running total require at least one dimension in the query.
Which calculations are offered depends on the measure’s aggregation type:

Filtered measures

When working with query Results, pivot so at least one dimension is on columns, then open the header menu on a pivoted measure column and choose Create filtered measure. Cube adds a calculated measure that applies the column’s slice—for example, from Count broken down by Status, you get a measure that only aggregates rows matching that status (such as completed orders only). The option appears only for native measures on pivoted columns, not for calculated fields. The same flow works in Explore when results are pivoted the same way.

Bins and value groups

You can also bucket an existing dimension without writing SQL. Open its menu in the field picker sidebar and choose Create bins… on a number dimension, or Group values… on a string or boolean one (grouping a boolean dimension is how you rename its true/false values). Time dimensions have granularities instead, and an already derived field cannot be bucketed again. To count the time between two time dimensions, see durations.

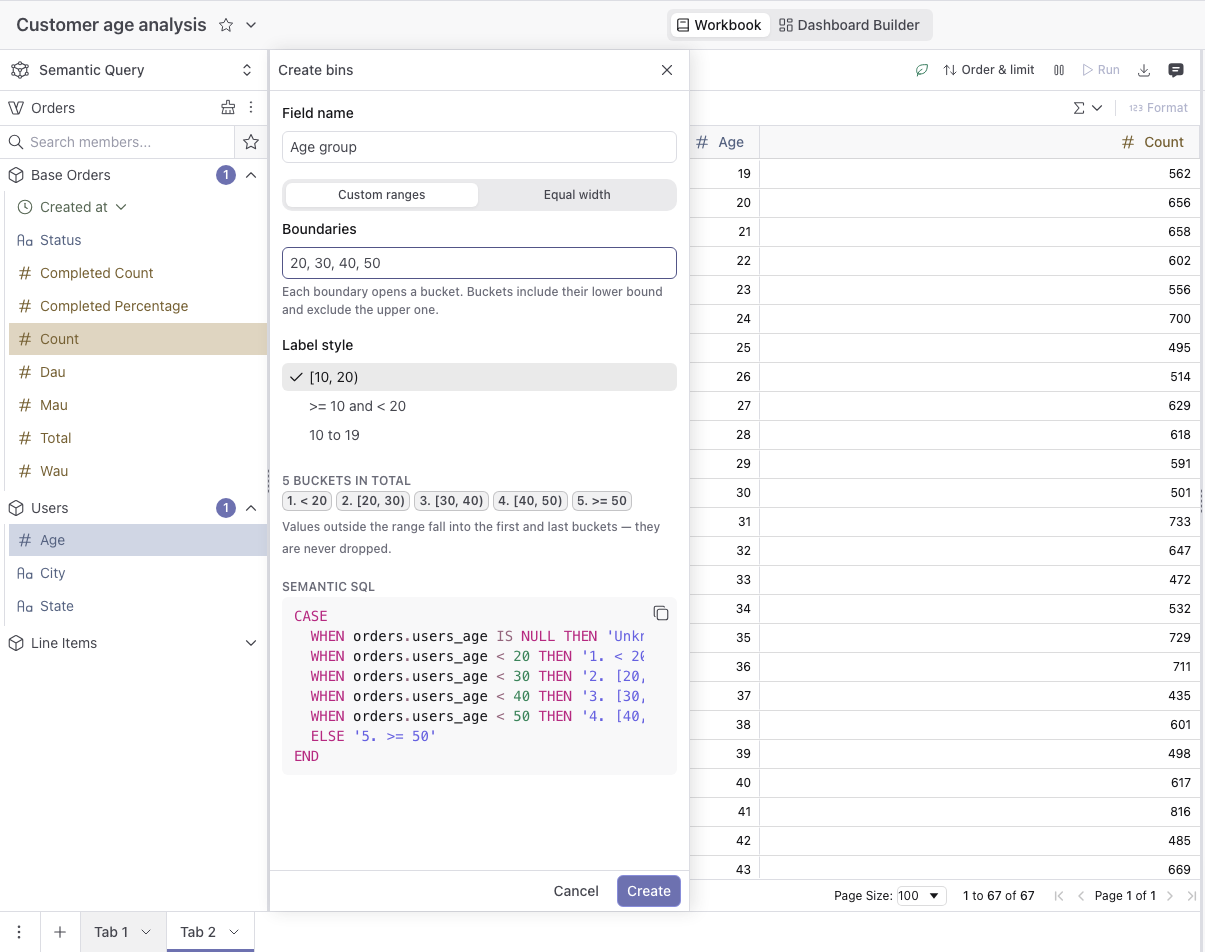

The Create bins panel on a number dimension, showing typed boundaries, the label styles, a preview of the five buckets, and the generated Semantic SQL
Bins take their boundaries either as a list (Custom ranges) or from a Range start and Range end (Equal intervals), which are prefilled from the column’s own minimum and maximum. For equal intervals, choose whether the range is split by Number of bins or by a fixed Bin size. Each boundary opens a bucket that includes its lower bound and excludes the upper one, and two open-ended buckets are added at the edges—so 0, 18, 25 yields < 0, [0, 18), [18, 25), >= 25, and no row is dropped. Label style renders a bucket as [10, 20), >= 10 and < 20, 10 to 19 (offered only while every boundary is a whole number), or Custom, which lets you type your own label for each bucket. Turn off Label empty values separately to fold rows where the dimension is NULL into the last bucket instead of reporting them under their own label (Unknown by default). Value groups collect the dimension’s values into named sets. A group is defined either by the values you pick or by a rule, chosen with the operator in front of the search box:
  • Search (the default) narrows the list of values. Pick values, name the group, and choose Add group. Select all N matches picks every value the search shows; the list stops at 100 values, so use Contains to catch every match.
  • Contains, Starts with, and Ends with define the group by a rule on the text you type. Is empty takes no text: its rule matches empty strings (''), not NULL. The list shows the values the rule matches, without checkboxes. Name the group and choose Add as rule.
Rules match case-insensitively, and they are evaluated when the query runs, so they also catch values that appear in the data later. To add values to an existing group, type its name; the button then reads Add to “name”. Picking a value that another group holds moves it to the group you add it to. Moving a value does not change any rule, so a rule in an earlier group can still catch it. A value can match more than one group, for example two overlapping rules. It joins the first group that matches it, so the order of the groups is their precedence. A new group is added after the existing ones, so add the narrower rule first. By default, whatever matches no group—including NULL values—falls under Everything else, which defaults to Other; turn off Group remaining values to have those rows return NULL instead. Bucket labels carry their position as a prefix (1., 2., zero-padded past nine buckets) so that sorting the column sorts it by value rather than alphabetically, which would put >= 25 before [0, 18). The prefix is visible in results, chart legends, and axes.

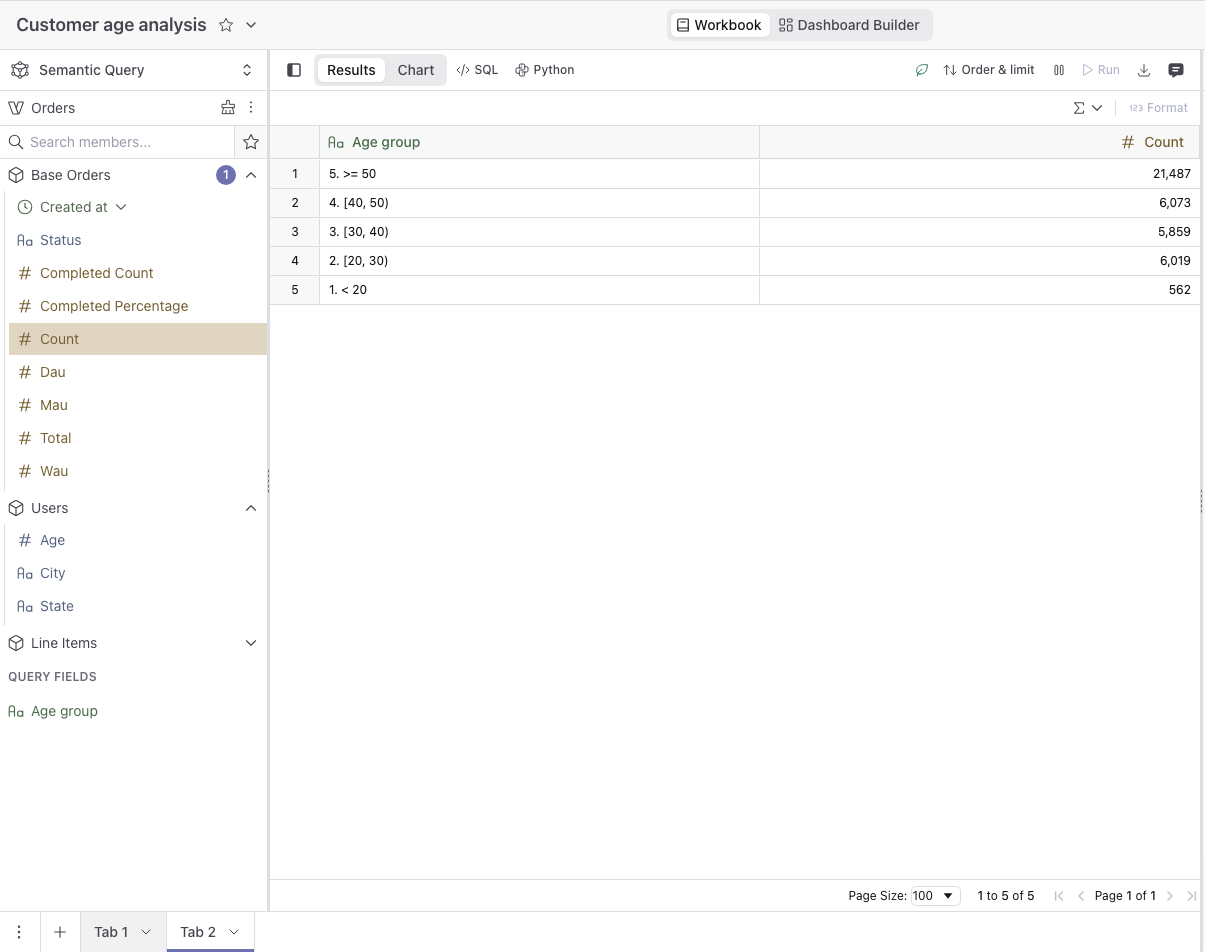

A workbook result grouped by the bucketed field: one row per bucket, with the created field listed under Query fields in the sidebar
The panel previews the Semantic SQL it generates as you build:
Value groups render each group as a branch: picked values as IN, text rules as ILIKE, and Is empty as = '':
Equal intervals ranges are resolved into boundaries when the field is created, not recomputed from the data. Values arriving later outside the range join the first and last buckets instead of extending them.
To change a bucketed field, choose Edit bins… or Edit groups… from its menu—either in the sidebar or on its column header in the results. Only fields this panel generated offer the action; a CASE expression written by hand does not. A bucketed field can also be filtered, the same way as a native dimension — choose Filter from its menu. The value picker offers only the bucket’s own labels (e.g. Picked and Other), since a bucket can’t return a value it wasn’t built to produce, and is null / is not null are offered only when the bucket can actually return NULL. Editing the bucket afterward keeps the filter’s selection where possible — renaming a label moves the selection with it — but changing the number of buckets drops a selection that no longer matches, since the underlying structure changed.

Top N fields

A Top N field keeps the N members of a string dimension with the highest or lowest value of a measure, and groups every other member under one label, such as the 5 biggest customers and an Other row. Choose Top N… in the dimension’s menu in the field picker sidebar, or in its column header menu in the results. The panel has these settings:
  • Show — Top or Bottom, and N. N starts at 10.
  • Ranked by — the measure to rank by. It starts on the first measure the report shows.
  • Ranked within — other dimensions of the report. Leave it on Whole report to rank across the whole report, or pick dimensions to keep N members in each group.
  • Group remaining values as — the label of the rest, Other by default.
The field replaces the dimension in the report and is named like Status, top 10. To change it, choose Edit Top N… in its menu. Members are ranked the same way as by the Top N filter: after the report’s other filters, with ties broken by the member’s value. To hide the rest instead of grouping it, switch Group remaining values as off. The panel then adds a Top N filter to the report instead of a field.

Durations between dates

You can count the time between two time dimensions of a semantic view without writing SQL, for example the days from created_at to shipped_at. Open the menu of the start date in the field picker sidebar and choose Create duration…. The action is offered on a time dimension of the data model when the semantic view has at least one other time dimension.
In the Create duration panel, the time dimension you opened the menu on is the Start date. Select the End date from the other time dimensions of the semantic view, and choose a Unit: Days, Hours, Weeks or Months. The Field name follows your picks, for example Created At to Shipped At (days), until you type your own. Choose Create to add the field to Query fields. The panel previews the Semantic SQL it generates:
A duration counts the unit boundaries crossed between the two dates, not the elapsed time: from 23:59 to 00:01 the next day is 1 day, and from 00:01 to 23:59 the same day is 0 days. Both dates are converted to the query time zone first. When the end date is earlier than the start date, the value is negative, and when either date is empty, the value is empty. The generated field is a regular calculated field, with no Edit duration… action: to switch the unit, edit its SQL expression. Like any calculated dimension, you can promote it to a workbook field.
Durations depend on how the data source translates DATEDIFF. They work on Postgres, for example, but may fail on other data sources.

Promoting to a workbook field

A query field belongs to one report. A workbook field belongs to the workbook: it is listed under Workbook fields in the field picker sidebar of every report on the same semantic view, and dashboard filters and field switchers can target it. To promote a calculated dimension, choose Promote to workbook field from its column header menu in the results or from its menu in the sidebar. In the Save calculated field dialog, enter a Name and, optionally, a Title, Description and Format, then choose Save. The field stays a dimension, and Value type is prefilled from its SQL. Only dimensions can be promoted. Calculated measures stay query fields.

Promoting to the data model

A workbook field exists only in its workbook. To add it to the data model, choose Promote to data model from its menu in the field picker sidebar. Cube opens the data model page of the deployment, with a prompt for the Semantic Model Agent in the chat input. The prompt describes the field: its name, title, description, semantic view, kind, type, format and Semantic SQL expression. If the field is built on other workbook fields, the prompt also includes their expressions. It asks the agent to:
  1. Find the cubes behind the semantic view members that the expression uses.
  2. Stop if the data model already has an equivalent member, and name it.
  3. Otherwise, add the member to the cube and include it in the semantic view.
  4. Review the change.
  5. Commit the change to a new branch and open a pull request. If the repository cannot open one, the agent leaves the change on the development branch.
The agent does not merge to the main branch and does not change the workbook. Nothing is sent automatically: read the prompt, edit it if necessary, and send it. Promote to data model is shown only when all of these are true:
  • You have the Developer role or a role above it.
  • AI features are available for your account, and the deployment has an agent.
  • You can edit the data model, on the main branch or on development branches.
When the new member is merged and deployed, the workbook field stays in the workbook, and reports continue to use it. To move a report to the data model member, replace the field in the report, then delete the workbook field if no report uses it.

Editing a calculated field

Select a query field in the sidebar to open the editor. You can change its SQL expression, then choose Update to apply. Select a workbook field in the sidebar to open the Update calculated field dialog. You can change its Title, Description, Format and Expression. Its Name does not change, because reports and dashboards find the field by it, and neither does the Value type of a dimension, because dashboard controls are set up for it. When you update the expression of a workbook dimension, every report of the workbook on that semantic view that still uses the previous expression gets the new one. A report where you changed the expression yourself keeps it.

Using calculated fields on dashboards

A workbook calculated dimension can be the target of a dashboard filter and an alternative on a dimension field switcher. Both pickers list such fields under Workbook fields. A field whose name the data model also defines is not listed. A control on a calculated dimension has some limitations: see the filter and field switcher sections. A published dashboard keeps the field’s definition from the moment you publish it; publish again to show your edits to viewers.
