Use case

A common analytics need is to show each row’s contribution to the overall total. For example, given revenue broken down by product brand, you might want to display what percentage of all revenue each brand represents:
brandrevenueshare of total
American Apparel$5,93028.98%
Patagonia$2391.17%
Columbia$14,30269.85%
There are two ways to achieve this in Cube:
  • Calculated fields — add a % of total column directly in a workbook without any data model changes. Best for ad-hoc exploration.
  • Data modeling — define the share measure in the semantic model so it is available everywhere: APIs, embedded analytics, AI agents, and Explore. Best for a metric that should be reusable across the product.

​
Using calculated fields

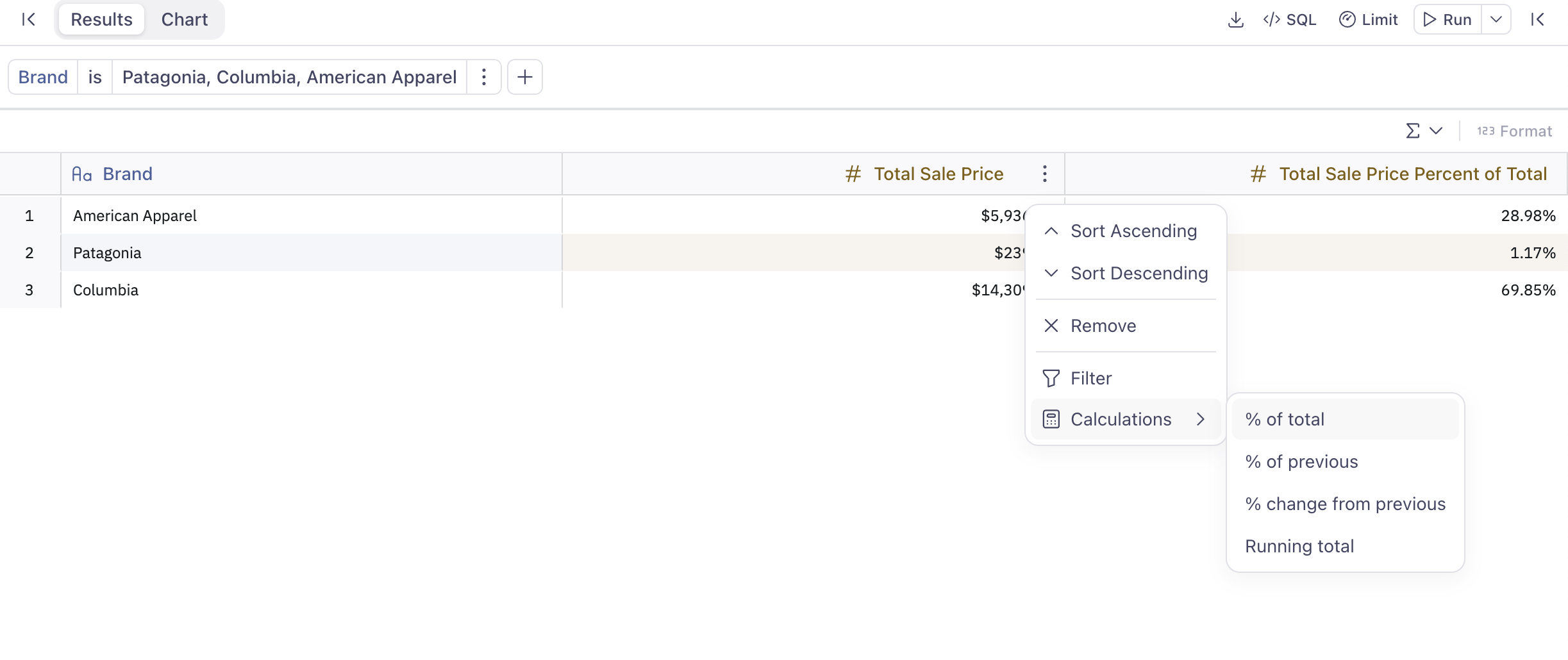

Calculated fields let you add derived columns to a workbook report without touching the data model. To add a % of total column:
  1. Build a table with the products.brand dimension and the order_items.total_sale_price measure.
  2. Open the header menu on the Total Sale Price column.
  3. Choose Calculations → % of total.
Cube adds a calculated field that divides each row’s value by the sum across all rows in the result.
% of total is available for measures with Count or Sum aggregation types. See Calculated fields for the full list of built-in calculations and how to edit them.

​
Data modeling

When the share measure needs to be part of the semantic model — so it is returned by the API, visible in Explore, or accessible to AI agents — define it using multi-stage measures powered by Tesseract. The key building block is the group_by parameter: when set to an empty list, the inner aggregation stage groups by nothing, computing the grand total across all rows. The outer stage then joins that total back and groups by the query’s dimensions as usual.
Multi-stage calculations are powered by Tesseract, the next-generation data modeling engine. Tesseract is currently in preview. Use the CUBEJS_TESSERACT_SQL_PLANNER environment variable to enable it.
Calculating share of total requires three measures:
  1. A base measure — the regular aggregate, e.g., total_sale_price.
  2. A helper measure — a multi-stage measure that re-aggregates the base measure with group_by: [], fixing the inner GROUP BY to nothing (the grand total). This measure is internal and should be hidden from views.
  3. A ratio measure — a multi-stage measure that divides the base by the helper total.
The examples below extend the order_items cube from the ecommerce demo model. The brand and category dimensions are proxied from the joined products cube so they can be referenced by group_by.

​
Share of grand total

Add the three measures to order_items:
cubes:
  - name: order_items
    sql_table: ECOMMERCE.ORDER_ITEMS

    joins:
      - name: products
        sql: "{CUBE.product_id} = {products.id}"
        relationship: many_to_one

    dimensions:
      - name: id
        sql: ID
        type: number
        primary_key: true

      - name: brand
        sql: "{products.brand}"
        type: string

    measures:
      - name: total_sale_price
        sql: SALE_PRICE
        type: sum
        format: currency

      - name: total_revenue_grand_total
        multi_stage: true
        sql: "{total_sale_price}"
        type: sum
        group_by: []

      - name: revenue_share
        multi_stage: true
        sql: "1.0 * {total_sale_price} / NULLIF({total_revenue_grand_total}, 0)"
        type: number
        format: percent
group_by: [] tells Tesseract that the inner stage for total_revenue_grand_total should group by no dimensions, producing a single grand-total row. The outer stage joins it back and groups by whatever dimensions are in the query (e.g., brand), so every row receives the same total denominator.

​
Hiding the helper measure from views

total_revenue_grand_total is a computation artifact — its value never changes with dimension grouping, so it is meaningless to end users on its own. Exclude it from the view using the excludes key while keeping includes: "*" for everything else:
views:
  - name: orders_transactions
    cubes:
      - join_path: order_items
        includes: "*"
        excludes:
          - total_revenue_grand_total

      - join_path: order_items.products
        prefix: true
        includes: "*"

      # ... other join paths
Only total_sale_price and revenue_share are exposed to consumers of the view.

​
Share of a fixed subtotal

Sometimes you want each row’s share within a category rather than the overall total — for example, each brand’s share of its product category’s revenue. Use group_by with the dimension you want to fix as the subtotal boundary. The inner stage will group only by that dimension, and the outer stage will group by the full set of query dimensions:
cubes:
  - name: order_items
    sql_table: ECOMMERCE.ORDER_ITEMS

    joins:
      - name: products
        sql: "{CUBE.product_id} = {products.id}"
        relationship: many_to_one

    dimensions:
      - name: id
        sql: ID
        type: number
        primary_key: true

      - name: brand
        sql: "{products.brand}"
        type: string

      - name: category
        sql: "{products.category}"
        type: string

    measures:
      - name: total_sale_price
        sql: SALE_PRICE
        type: sum
        format: currency

      - name: category_revenue_grand_total
        multi_stage: true
        sql: "{total_sale_price}"
        type: sum
        group_by:
          - category

      - name: revenue_share_of_category
        multi_stage: true
        sql: "1.0 * {total_sale_price} / NULLIF({category_revenue_grand_total}, 0)"
        type: number
        format: percent
With group_by: [category], the inner stage computes revenue per category. The outer stage groups by both category and brand, so each brand row divides its revenue by the right category total. Exclude category_revenue_grand_total from the view the same way as shown above.

​

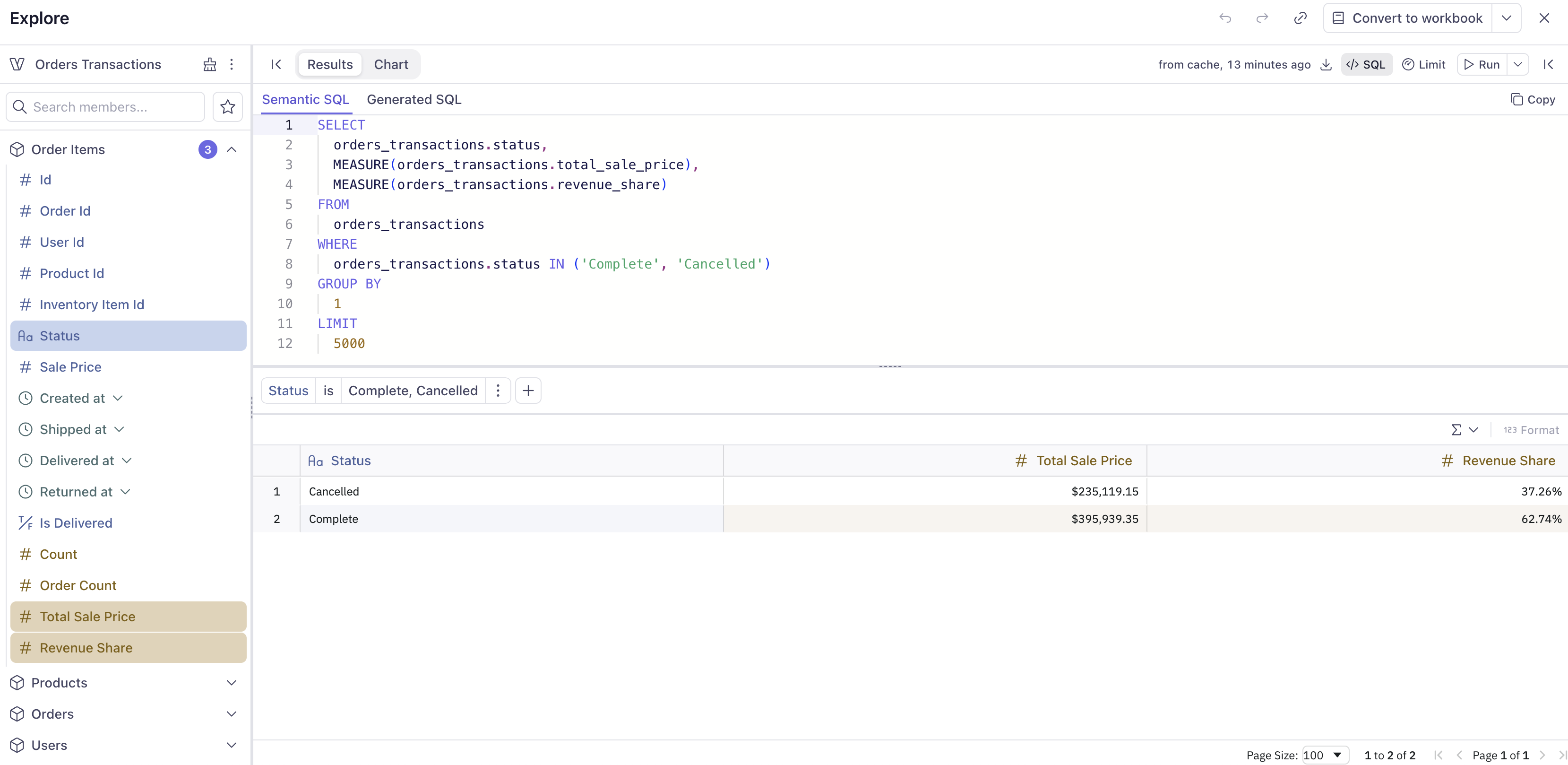

Result

Because total_revenue_grand_total is excluded from the view, only the meaningful measures — total_sale_price and revenue_share — are visible to end users in Explore, workbooks, and the API.
Query filters applied to the dimension used in share calculations (e.g., filtering to a specific brand) will also filter the data used to compute the total, making that row’s share appear as 100%.
