This page covers frontend connectivity — exposing Cube’s HTTP and SQL APIs to your applications, browsers, BI tools, embedded analytics clients, and Semantic Layer Sync-generated configs over a private network. For backend connectivity (letting Cube reach into your network to query data sources, auth providers, BI APIs targeted by SLS, and other upstream services), see AWS PrivateLink or VPC Peering.
With Dedicated Infrastructure and Bring Your Own Cloud on AWS, Cube supports establishing AWS PrivateLink connections from your AWS accounts to the Cube API endpoints. This lets your applications, internal BI tools, and end-user browsers reach the Cube HTTP, SQL, and AI APIs entirely over private AWS networking — never touching the public internet. When private connectivity is in place, the public API endpoints can be disabled completely on request.
Available on the Enterprise plan with Dedicated Infrastructure or BYOC on AWS. Contact us to enable private API connectivity for your tenant.

​
Architecture

Cube runs as two cooperating planes:
  • The control plane powers the Cube UI and the product surface area (deployment management, schema editor, dashboards, Semantic Layer Sync, etc.) and is always served from Cube’s public domain at https://<customer>.cubecloud.dev. The control plane itself does not need private connectivity — it is a SaaS UI like any other.
  • The data plane runs your Cube deployments and serves all Cube HTTP and SQL data API traffic — REST/GraphQL queries from your applications, live data calls issued by the Cube UI while rendering charts, SQL connections from BI tools, and AI traffic to the Chat API and other AI endpoints (including data-plane-hosted AI Engineer agents and external agentic clients calling the Chat API as a tool). The data plane is the part that talks to your databases and returns query results, and the part this document teaches you how to expose privately.
AWS PrivateLink lets a service running in one VPC be consumed from another VPC over the AWS internal network, without VPC peering or routing through the internet. The service owner publishes a VPC Endpoint Service in front of an internal load balancer; the consumer creates a corresponding interface VPC Endpoint in their VPC, which appears as a set of private ENIs that route traffic to the service over the AWS backbone. Cube exposes two VPC Endpoint Services per Cube Region — one fronting the HTTP (REST/GraphQL) data API and one fronting the SQL data API. Each endpoint service sits in front of an internal Network Load Balancer (NLB) in the Cube VPC. On the HTTP side, the NLB forwards traffic to Cube’s ingress controller, which terminates TLS using a certificate that only covers *.<cube-region>.cubecloudapp.dev. Because that certificate is bound to the Cube-managed hostname, you have two options for presenting HTTPS to your own clients (covered in detail below):
  • Re-terminate TLS on your side with your own certificate for the hostname your clients will dial (http.cube.internal, cube.example.com, …), forwarding upstream to the HTTP VPC endpoint.
  • Reuse the Cube hostname privately by setting up an internal DNS override for <cube-region>.cubecloudapp.dev that points at the VPC endpoint. Cube’s certificate is then valid for all clients without any additional cert work on your side.
On the SQL side, TLS is terminated inside the SQL API service behind the NLB, and SQL clients connect using sslmode=require (or equivalent) directly to the VPC endpoint hostname. On your side, you create a VPC Endpoint (interface endpoint) in your VPC that connects to each Cube endpoint service, and bind a DNS name to it that resolves to the endpoint’s private IPs from inside your VPN-routable network. Your applications and BI tools then connect to that private hostname exactly as they would to a public Cube endpoint, except the traffic flows through PrivateLink instead of the internet.

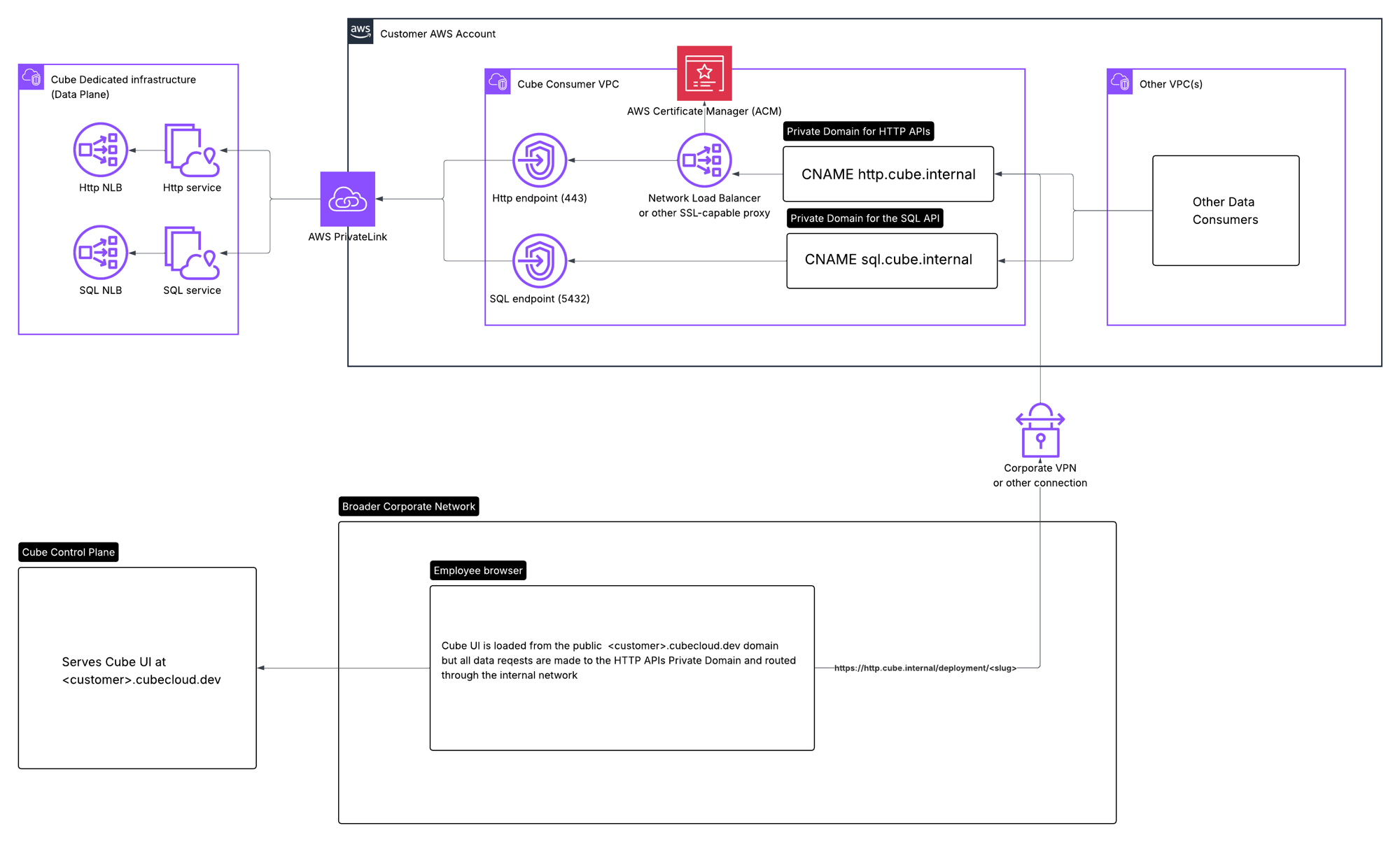

Private API Connectivity on AWS — control plane vs data plane topology, VPC endpoints fronted by a customer NLB / SSL-capable proxy, private DNS for the HTTP and SQL APIs, and browser traffic from the corporate VPN

​
Cube Region

The endpoint services described here are scoped to a Cube Region — the unit of infrastructure that hosts one or more of your deployments. Each region has a stable identifier of the form <provider>-<geo-region>-<infrastructure> (e.g. aws-us-east-1-t-12345-prod for a single-tenant Dedicated region, or aws-us-east-1-t-12345-byoc for a BYOC region). The hostname you override on your side — either privately remapping <cube-region>.cubecloudapp.dev or fronting it with your own domain — applies to every deployment in that region. See Cube Regions for the full reference, including how to find the exact region identifier for your tenant.

​
How queries are routed

A single private endpoint per region serves all deployments inside that region; there is no per-deployment subdomain or per-deployment endpoint to provision separately.
On Cube’s shared, public-facing infrastructure, traffic is routed to a deployment by subdomain — <deployment-slug>.<cube-region>.cubecloudapp.dev maps to a specific deployment. When private connectivity is enabled, Cube switches to path-based routing so that a single private hostname can serve every deployment in the region.
For the HTTP API, the prefix has the shape:
https://<your-private-hostname>/deployment/<deployment-slug>/cubejs-api/v1/...
where <deployment-slug> is the leftmost label of the deployment’s Cube-issued hostname (e.g. thirsty-raccoon from thirsty-raccoon.aws-us-east-1-t-12345-prod.cubecloudapp.dev). The same prefix applies to all HTTP endpoints — /cubejs-api/v1/load, /livez, the GraphQL endpoint, and so on:
curl https://http.cube.internal/deployment/thirsty-raccoon/cubejs-api/v1/load \
  -H "Authorization: $CUBE_JWT" \
  -d '{"query":{"measures":["orders.count"]}}'
The SQL API uses a TCP protocol that does not carry an HTTP path, so SQL connections are routed at the protocol layer (via the database name and credentials in the connection string) rather than by URL prefix. SQL clients connect to the same private hostname on port 5432 and identify the deployment through the SQL connection parameters.

​
TLS options for HTTPS

Cube’s ingress controller can terminate TLS only for the Cube-issued domain *.<cube-region>.cubecloudapp.dev. Pick the option that fits your DNS and certificate posture:

​
Option A — Reuse the Cube hostname via private DNS

Create a private DNS zone for <cube-region>.cubecloudapp.dev — typically a Route 53 private hosted zone associated with your VPC, or an equivalent override in your corporate resolver — and point the following records at the VPC endpoints:
Record nameTypeTarget
<cube-region>.cubecloudapp.devAAlias to the HTTP VPC endpoint
*.<cube-region>.cubecloudapp.devAAlias to the HTTP VPC endpoint
sql.<cube-region>.cubecloudapp.devAAlias to the SQL VPC endpoint
*.sql.<cube-region>.cubecloudapp.devAAlias to the SQL VPC endpoint
Clients then dial:
https://<cube-region>.cubecloudapp.dev/deployment/<deployment-slug>/cubejs-api/v1/...
TLS is terminated by Cube’s ingress controller using Cube’s own certificate for *.cubecloudapp.dev — you don’t need to manage a certificate yourself. This is the simplest setup if you control DNS resolution on the networks your clients live on. Configure the same hostname in Cube’s admin interface so that the UI and Semantic Layer Sync generate links and configs against it.

​
Option B — Front the endpoint with your own domain and certificate

If you’d rather present clients a hostname inside your own domain (e.g. cube.example.com), stand up a customer-side proxy — typically an internal NLB with a TLS listener bound to a certificate you own, or any reverse proxy such as nginx, HAProxy, Envoy, or an ALB — that terminates TLS with your certificate and forwards traffic to the Cube HTTP VPC endpoint. Because Cube’s ingress only has a cert for *.cubecloudapp.dev, the proxy must do its own TLS termination; it cannot pass-through your custom-domain TLS to Cube. Once your proxy is in place, configure its hostname in Cube’s admin interface so generated links and SLS configs match.

​
Reaching Cube from every client

The same private hostname is used by three distinct classes of client, and each imposes a requirement on how the name resolves:
  1. Your application servers inside the same VPC as the VPC endpoint resolve the private hostname via the VPC’s DNS resolver and connect over PrivateLink directly.
  2. End-user browsers loading the Cube UI. When a developer opens https://<customer>.cubecloud.dev and renders a dashboard, the page issues live queries against the Cube data API from the user’s browser. Those calls originate on the user’s laptop, not from a Cube backend, so the URL embedded in the UI must be a hostname the user’s machine can resolve and reach. For this to use PrivateLink, the hostname has to resolve to the VPC endpoint over your corporate VPN’s DNS and route over the VPN to your VPC. A purely internal name that only resolves inside the VPC will fail when the user is on the corporate network but not in the VPC; a public name that resolves outside the VPN will bypass PrivateLink entirely.
  3. Internal BI tools configured by Semantic Layer Sync (SLS). If you publish Cube datasets to BI tools via SLS, Cube generates connection configs that embed the Cube API hostname. Those configs are used by BI desktop clients, BI gateways, or other clients running inside your network — so SLS must be configured with a hostname those clients can resolve and reach over your VPN.
In short, the private hostname must be visible and routable from every place the Cube API needs to be reached — your VPCs, your corporate VPN-connected laptops, and any BI gateway hosts. Cube cannot infer your internal DNS; you tell us the hostname you want to use, and you point it at the VPC endpoint on your side.
If a user opens the Cube UI and sees a “Network Error” banner while loading charts, dashboards, or other data-driven views, it means the browser cannot reach the data plane over your private network. Confirm with your internal networking team that the private hostname resolves on the user’s machine and that there is a working VPN route from that machine into the VPC where the VPC endpoint lives.

​
Configuring the private domain

Configure the private hostname for each Cube Region from the Cube admin panel, under Regions → <your region> → Path-based routing → Domain override. Cube uses whatever value you set when generating:
  • Links inside the Cube UI (used by browsers when rendering dashboards).
  • Connection configs generated by Semantic Layer Sync.
  • API connection details surfaced to your applications.
Use the hostname your clients will actually dial — the custom-domain front-end in Option B (e.g. http.cube.internal), or the Cube-issued <cube-region>.cubecloudapp.dev if you went with Option A. Leaving the field empty falls back to the default public hostname, and clients will not use PrivateLink even if the endpoint service is connected.

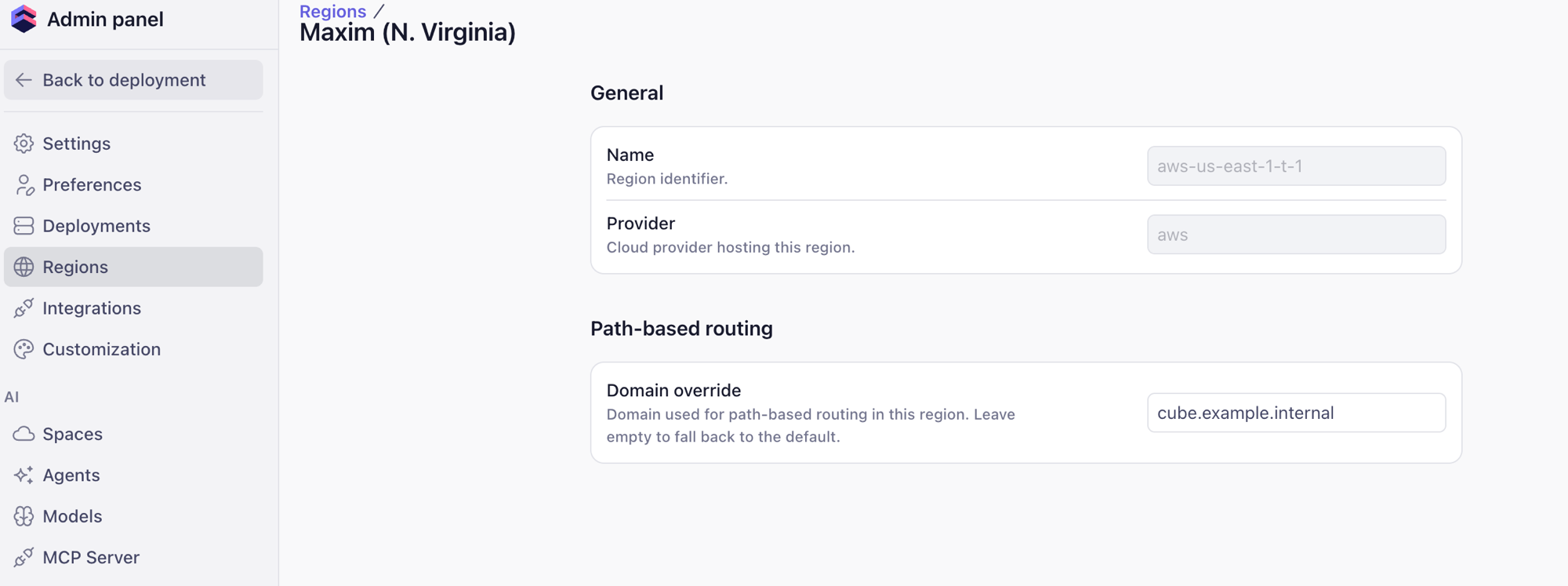

Cube admin panel — Regions → Path-based routing → Domain override field
HTTP and SQL APIs are typically published under two separate hostnames (http.cube.internal and sql.cube.internal in the diagram above), since the HTTP endpoint sits behind your TLS-terminating proxy on port 443 while the SQL endpoint is accessed directly on port 5432.

​
Provisioning checklist

  1. Request PrivateLink for your tenant. Contact Cube and provide your tenant name and the AWS account ID(s) that will create the VPC endpoints.
  2. Receive endpoint service names. Cube provisions one HTTP and one SQL VPC Endpoint Service per region and shares the service names (com.amazonaws.vpce.<region>.vpce-svc-…) along with the Cube Region identifier.
  3. Create VPC endpoints in your account. In the AWS Console under VPC → Endpoints, create an interface endpoint for each service. Place the endpoint in subnets that are reachable from both your application workloads and your corporate VPN, and attach a security group that allows inbound traffic on 443 (HTTP) or 5432 (SQL) from those clients.
  4. Accept the connection. Cube accepts the endpoint connection request on the provider side once visibility is confirmed.
  5. Bind the private hostname. Pick a TLS option above and create the corresponding DNS records — either a Route 53 private hosted zone for <cube-region>.cubecloudapp.dev (Option A) or a single record for your custom hostname pointing at your proxy (Option B). Make sure the records resolve from every network that needs to reach Cube, corporate VPN included.
  6. Set the domain in Cube. In the admin panel under Regions → <your region> → Path-based routing → Domain override, enter the chosen hostname so that Cube generates UI links and SLS configs using that name.
  7. (Optional) Disable public endpoints. Once private connectivity is verified end-to-end, ask Cube support to disable the public HTTP and SQL endpoints for your deployment.

​
Availability Zone alignment

Cube’s dedicated infrastructure in each AWS region is deployed across a limited, fixed set of Availability Zones. AWS PrivateLink requires the consumer’s VPC endpoint to have a subnet in at least one of the same AZs where the provider’s endpoint service is exposed. If none of the subnets in your VPC live in a Cube-supported AZ for that region, the VPC endpoint will fail to attach.The remedy is to create an additional subnet in one of the Cube-supported AZs inside your VPC, attach the VPC endpoint to that subnet, and route traffic from your other AZs to it. AWS-internal AZ IDs (e.g. use1-az2) differ per-account, so coordinate with the Cube team to confirm the correct AZ IDs for your region before adding the subnet.

​
Verifying connectivity

From a host inside the consumer VPC or attached to the corporate VPN:
# DNS resolves the HTTP and SQL names to their VPC endpoints' private IPs
dig +short http.cube.internal
dig +short sql.cube.internal

# HTTPS reachable over PrivateLink, routed to a specific deployment by path prefix
curl -v https://http.cube.internal/deployment/<deployment-slug>/livez

# SQL API reachable
psql "host=sql.cube.internal port=5432 user=… dbname=… sslmode=require" -c "select 1;"
If DNS resolves but connections hang, check the VPC endpoint state, security group rules on the endpoint ENIs, and that your VPN’s route tables include the VPC’s CIDR.
